1 kW Horizontal Axis Wind Turbine + Mounting Tower

1 kW Horizontal Axis Wind Turbine + Mounting Tower

58,900.00TL

70,900.00TL

Save 12,000.00TL

SKU: Y1000-12V

Quantity:

Voltage: 12 Volts

12 Volts 24 Volts 48 Volts

Cargo

Orders placed before 2:00 PM are dispatched the next business day.

Discount

Automatic 5% discount in the cart. Valid on all orders.

Description

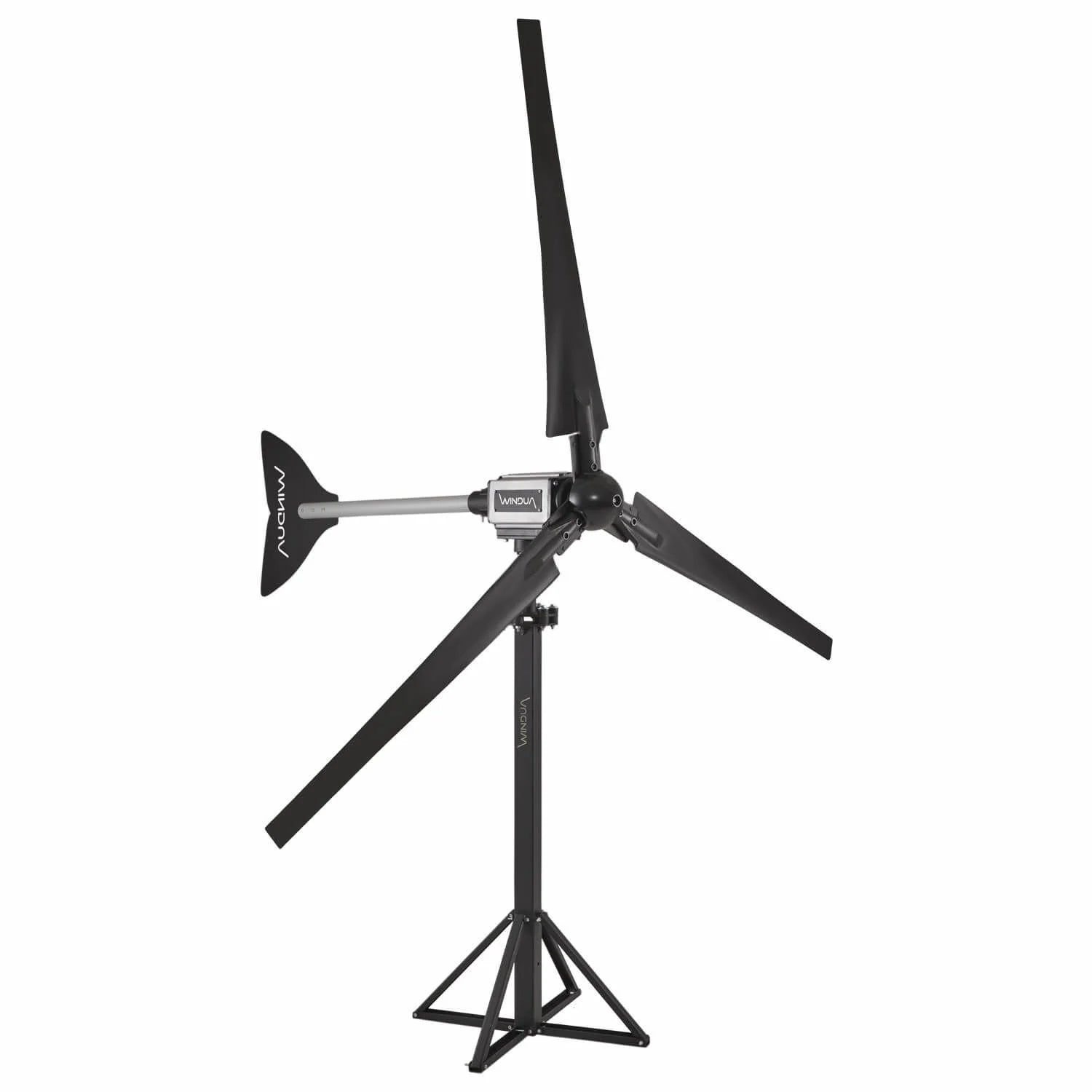

The Windua Y1000 is a 1 kW horizontal axis wind turbine designed to generate electricity efficiently for residential use and small-scale energy projects. Its composite blades, low noise level of 33 dB, and low start-up wind speed of 3 m/s provide quiet and efficient energy production. With 12V, 24V, and 48V output options, it is compatible with a wide range of energy systems.

Key Features:

Maximum power: 1 kW, optimum power: 500 W
Three-phase AC output
Low-maintenance design
Easy installation with minimal noise level
Mounting tower included

Technical Specifications:

Specification	Value
Model	Windua Y-1000
Weight	19 kg
Maximum Power	1 kW
Output	Three-phase AC
Cut-in Wind Speed	3 m/s
Blade Material	Composite
Rotor Diameter	2240 mm
Blade Weight	760 g
Start-up Wind Speed	4 m/s
Number of Blades	3
Maximum Rotational Speed	1500 rpm
Maximum Wind Speed	48 m/s
Average Noise Level	33 dB

Technical Information

Model: Windua Y-1000
Maximum Power: 1 kW
Output Type: Three-phase AC
Operating Voltage: 12V / 24V / 48V
Cut-in Wind Speed: 3 m/s
Start-up Wind Speed: 4 m/s
Blade Material: Composite
Rotor Diameter: 2240 mm
Number of Blades: 3
Maximum Rotational Speed: 1500 rpm
Maximum Wind Speed: 48 m/s
Weight: 19 kg (body)
Average Noise Level: 33 dB

Assembly Instructions

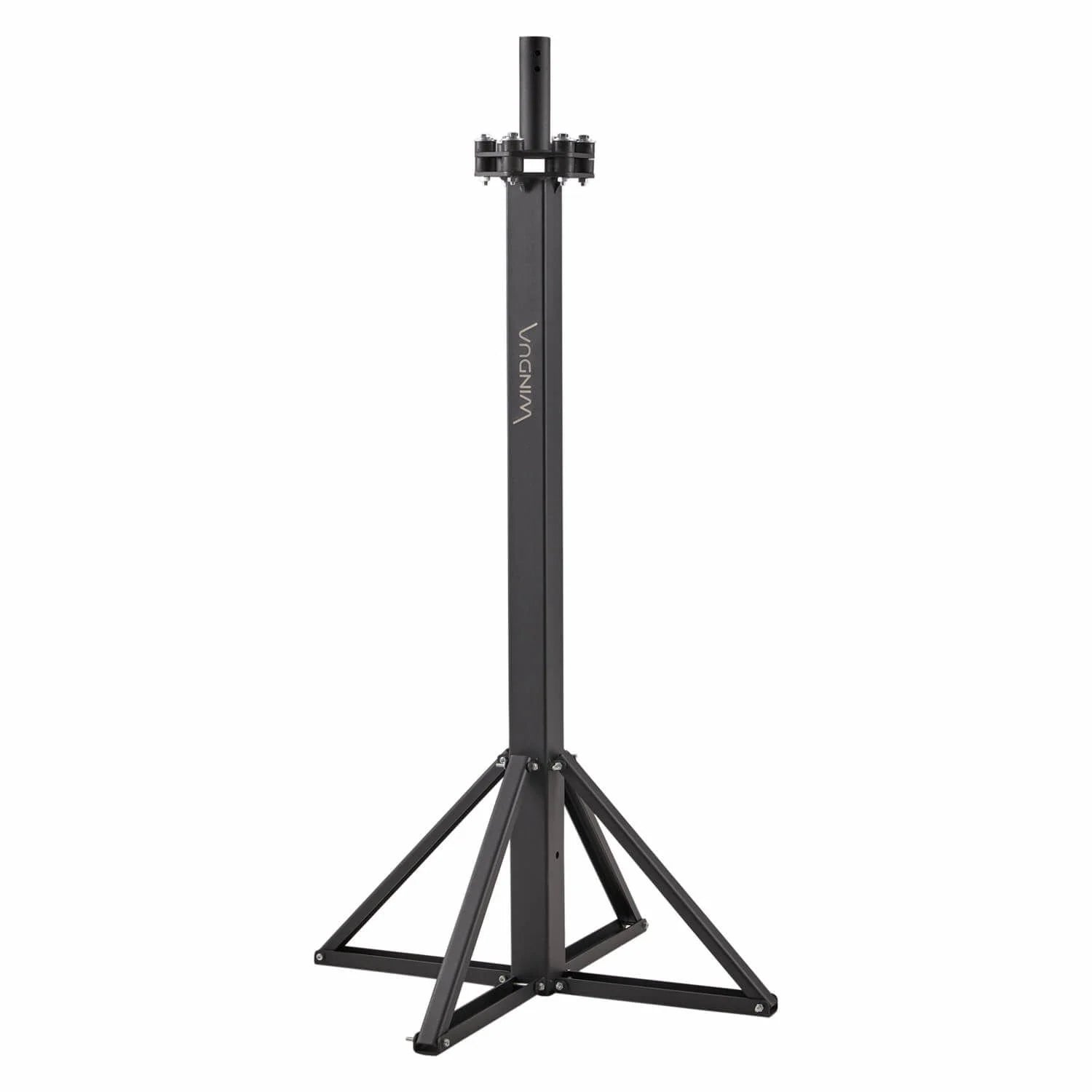

First, securely fix the mounting pole according to the installation location.

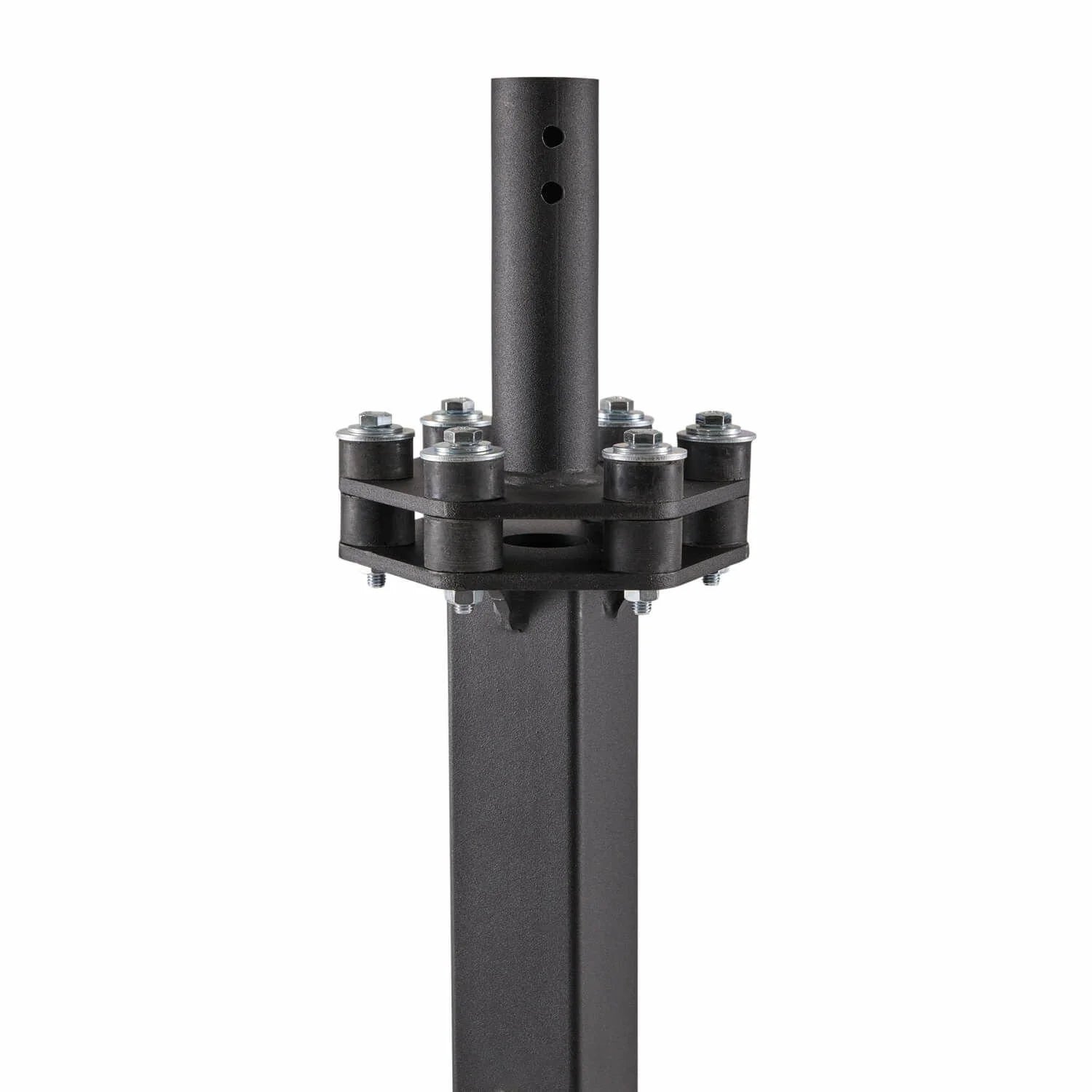

Secure the rubber dampers included in the package as shown in the illustration.

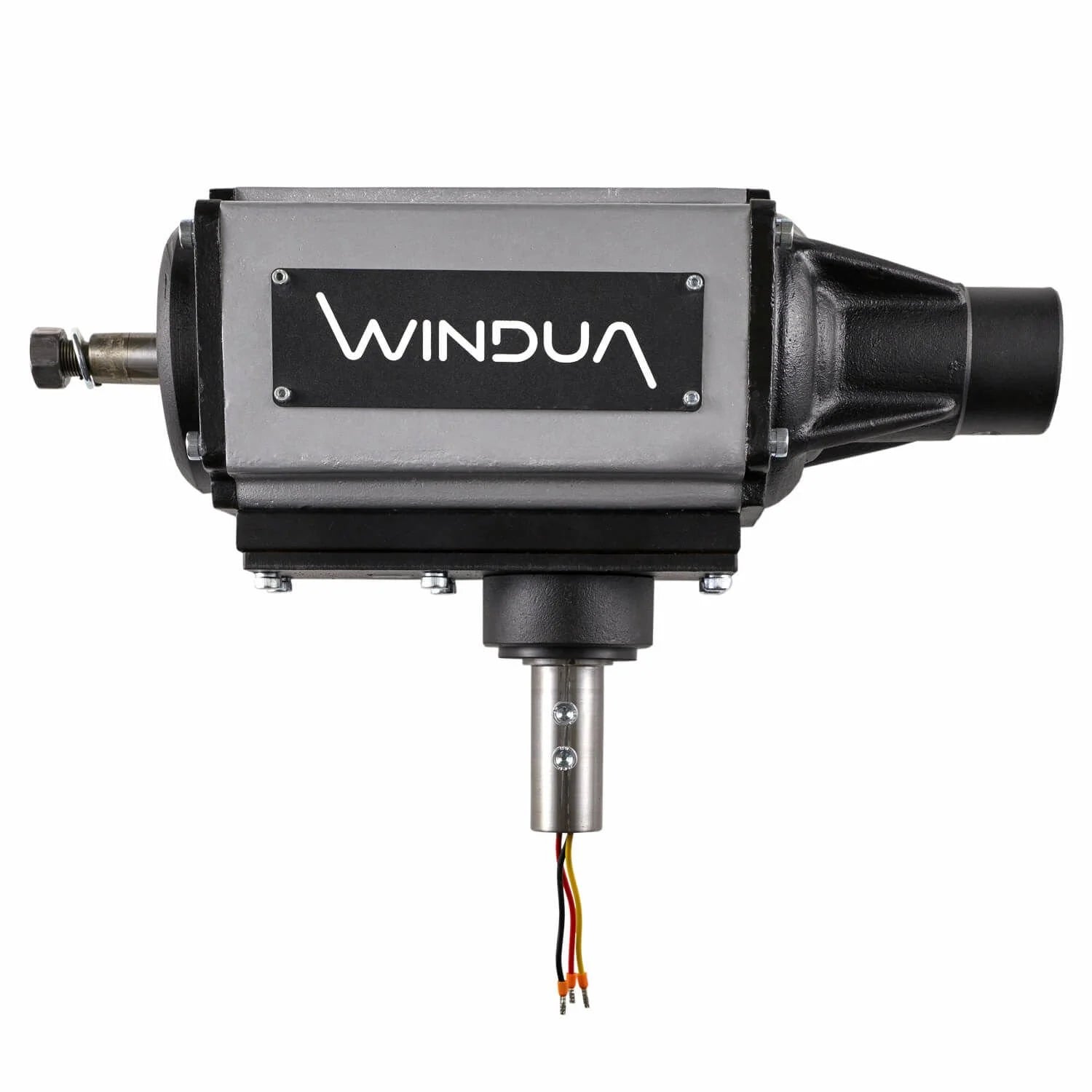

Place the turbine body onto the mounting pole as shown in the picture.
Attach the blades to the blade flange, ensuring equal spacing between all blades.
Mount the blade assembly onto the turbine shaft, making sure it is aligned with the shaft key. Secure it using the washer and the special locking nut.
After completing the blade installation, install the blade cover (nose cone).

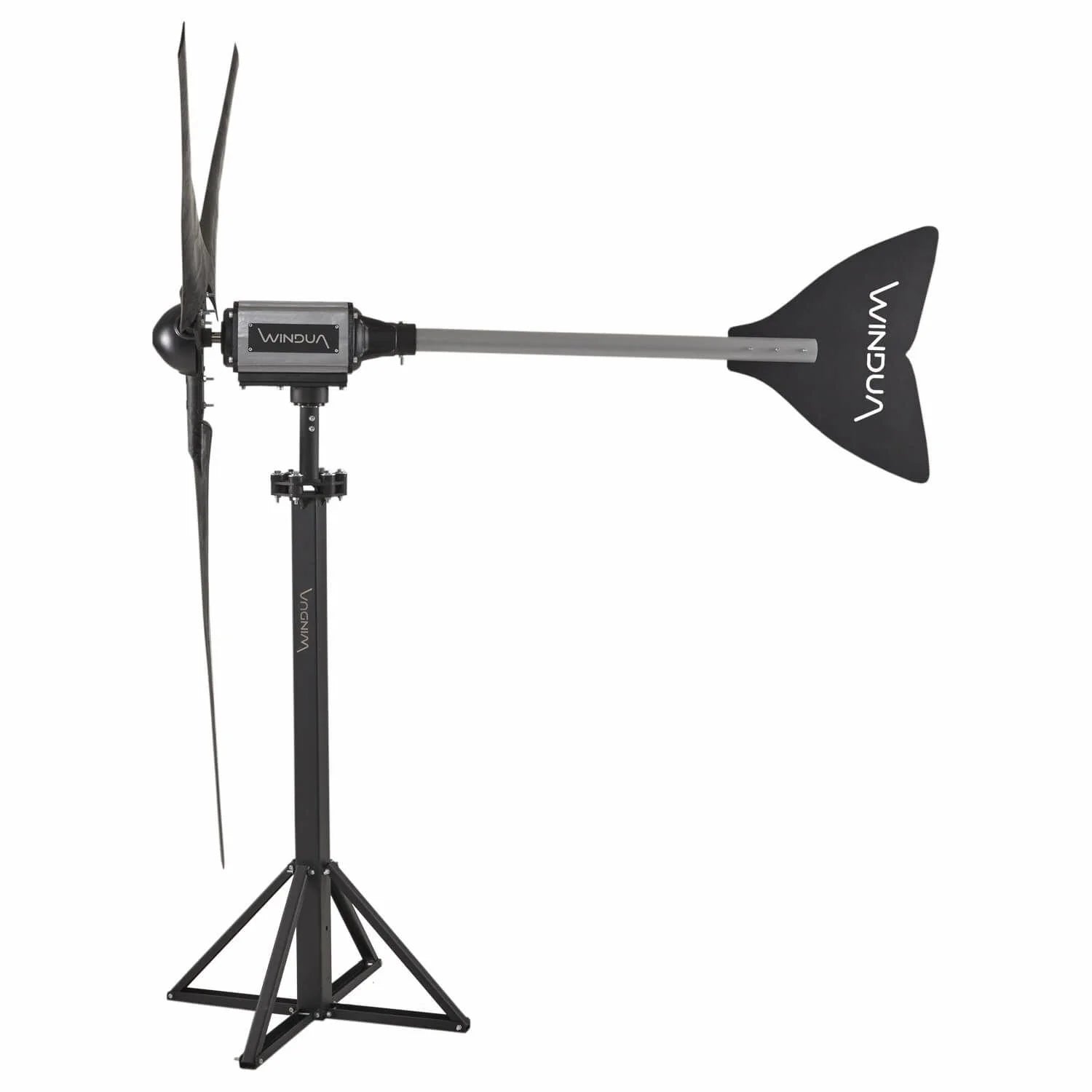

Finally, complete the installation of the tail boom and the tail vane.

Shipping and Returns

Shipping

Orders placed before 2:00 PM are handed over to the carrier by the next business day.

Delivery times may vary depending on the product and destination.

Returns Policy

Standard returns for international orders are not accepted.

If the product is defective or damaged, we offer:

A full or partial refund, depending on the case
Free replacement parts, if the issue is product-related

Maintenance Instructions

Our turbines are equipped with automatic overcharge braking systems. Due to continuous start-stop operation during the day and temperature fluctuations, the blade balance may change over time.
This is indicated by the turbine tail vibrating up and down. In such cases, the blade flange should be removed, the blade tip distances re-measured, and the blades reinstalled and tightened evenly.
During operation, magnetic impacts and oscillation / centrifugal forces may occur. Our damping rubber mounts are designed to absorb these forces. In addition, the system is reinforced with a balance locking mechanism from the center to the tail to ensure structural stability.
Over the years, temperature differences may cause bolts to loosen. Therefore, the tightness of the turbine and mounting pole bolts should be checked periodically.
The wind turbine generates three-phase AC power, which is converted to DC voltage by the charge controller. It should be connected to the batteries using suitable solar cables.
Since the terminal blocks are made of copper alloys, oxidation may occur at cable connection points over time. Terminal connections should be inspected regularly for oxidation.
In stormy weather conditions, wind turbine blades may break. If this occurs, the damaged blades must be replaced immediately.
To protect against overvoltage, the wind turbine operates with a dump load system. The resistors in the braking section of the charge controller should be checked periodically.
